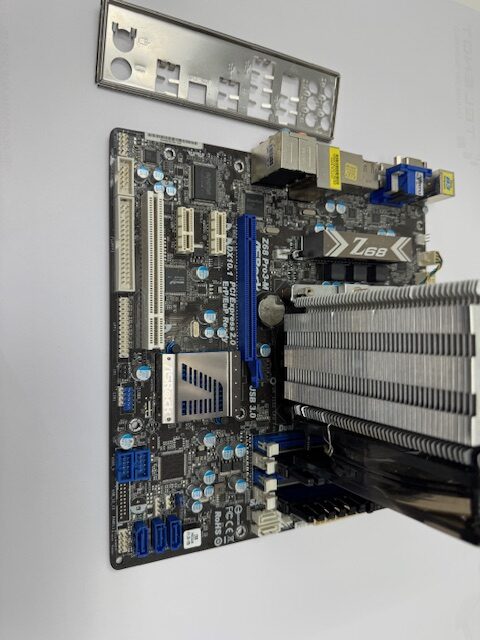

Asrock Z68 Pro3-M

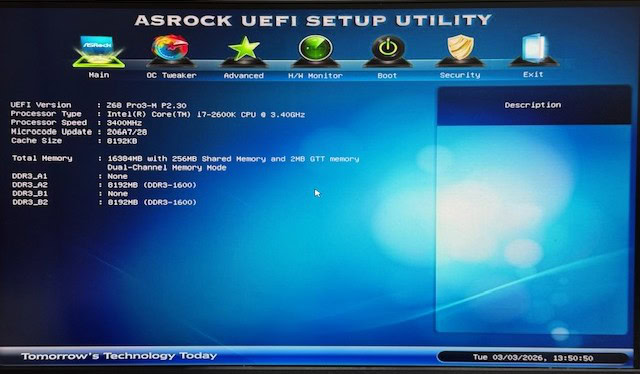

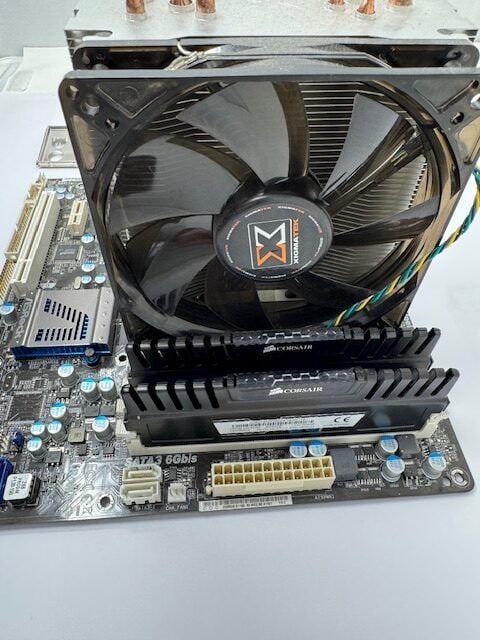

mit 16GB DDR 3 RAM und Intel Core i7-2600K

• CPU
  – Supports 3^rd and 2^nd Generation Intel^® Core™ i7 / i5 / i3 / Xeon^® / Pentium^® / Celeron^® in LGA1155 Package
  – 4 + 1 Power Phase Design
  – Supports Intel^® Turbo Boost 2.0 Technology
  – Supports Intel^® K-Series unlocked CPU
  – Supports Hyper-Threading Technology
• Chipset
  – Intel^® Z68
• Memory
  – Dual Channel DDR3 memory technology
  – 4 x DDR3 DIMM slots
  – Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
  – Max. capacity of system memory: 32GB*
  – Supports Intel^® Extreme Memory Profile (XMP)

  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

  **In order to maximize the system memory, please install 8GB memory module with 16 cells

• BIOS
  – 64Mb AMI UEFI Legal BIOS with GUI support
  – Supports “Plug and Play”
  – ACPI 1.1 Compliance Wake Up Events
  – Supports jumperfree
  – SMBIOS 2.3.1 Support
  – CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
• Graphics
  – Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® HD Graphics 2000/3000, Intel^® Advanced Vector Extensions (AVX)
  – Pixel Shader 4.1, DirectX 10.1
  – Max. shared memory 1759MB
  – Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort
  – Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
  – Supports DVI with max. resolution up to 1920×1200 @ 60Hz
  – Supports D-Sub with max. resolution up to 2048×1536 @ 75Hz
  – Supports DisplayPort with max. resolution up to 2560×1600 @ 60Hz
  – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
  – Supports HDCP function with DVI, HDMI and DisplayPort ports
  – Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI, HDMI and DisplayPort ports

  *Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows^® Vista™ and Windows^® 7.

  **Intel^® InTru™ 3D is only supported under Windows^® 7 and Windows^® 7 x64.

• Audio
  – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  – Premium Blu-ray audio support
• LAN
  – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  – Realtek RTL8111E
  – Supports Wake-On-LAN
  – Supports LAN Cable Detection
  – Supports Energy Efficient Ethernet 802.3az
  – Supports PXE
• Slots
  – 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
  – 2 x PCI Express 2.0 x1 slots
  – 1 x PCI slot
• Connector
  – 3 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel^® Rapid Storage and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug functions
  – 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel^® Rapid Storage and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug functions
  – 1 x Floppy connector
  – 1 x IR header
  – 1 x CIR header
  – 1 x Print Port header
  – 1 x COM port header
  – 1 x HDMI_SPDIF header
  – 1 x Power LED header
  – CPU/Chassis/Power FAN connector
  – 24 pin ATX power connector
  – 8 pin 12V power connector
  – Front panel audio connector
  – 3 x USB 2.0 headers (support 6 USB 2.0 ports)
• Rear Panel I/O
  I/O Panel
  – 1 x PS/2 Keyboard Port
  – 1 x VGA/D-Sub Port
  – 1 x VGA/DVI-D Port
  – 1 x HDMI Port
  – 1 x DisplayPort
  – 1 x Optical SPDIF Out Port
  – 4 x USB 2.0 Ports
  – 1 x eSATA2 Connector
  – 2 x USB 3.1 Gen1 Ports (Etron EJ168A)
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• Unique Feature
  – ASRock Extreme Tuning Utility (AXTU)
  – ASRock Instant Boot
  – ASRock Instant Flash
  – ASRock APP Charger
  – ASRock XFast USB
  – Lucid Virtu
  – ASRock Dehumidifier Function
  – Hybrid Booster:
  – CPU Frequency Stepless Control
  – ASRock U-COP
  – Boot Failure Guard (B.F.G.)
  – Combo Cooler Option (C.C.O.)
  – Good Night LED
• Accessories
  – I/O Shield
  – 2 x SATA Data Cables (optional)
• Hardware Monitor
  – CPU Temperature Sensing
  – Chassis Temperature Sensing
  – CPU, Chassis, Power Fan Tachometer
  – CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
  – CPU Fan Multi-Speed Control
  – Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor
  – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  – All Solid Capacitor design
• OS
  – Microsoft Windows^® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
• Certifications
  – FCC, CE
  – ErP/EuP Ready (ErP/EuP ready power supply is required)
