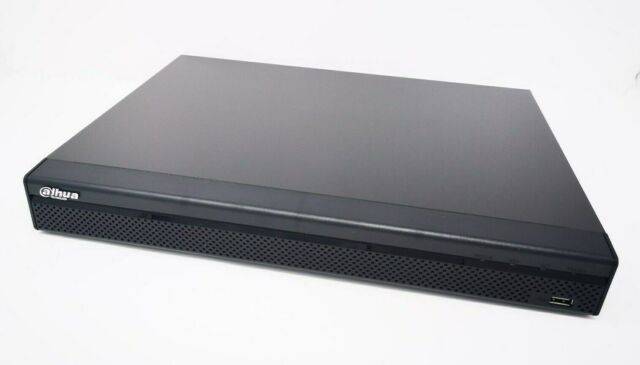

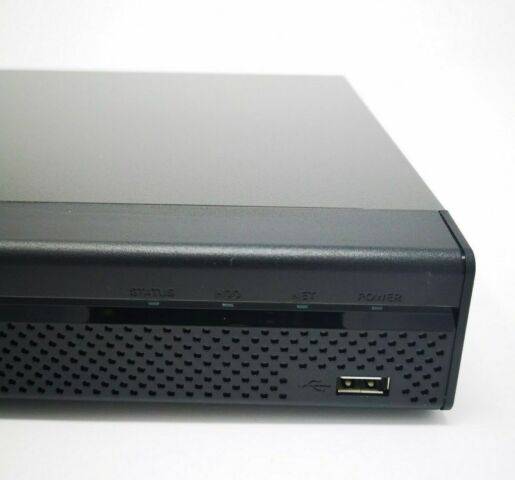

Dahua 8MP Digital Video Recorder / 16 Kanal

Name: Dahua 8MP Digital Video Recorder / 16 Kanal - SafeTechShop
Brand: TheBay
Price: 416.67 EUR
Availability: InStock

€ 500,00 € 416,67 exkl.MwSt.

inkl. MwSt.

zzgl. Versand

Lieferzeit: ca. 2-3 Werktage auf Lagerware

Dahua 8MP Digital Video Recorder / 16 Kanal / DHI-XVR5216AN-4KL

1 vorrätig

Kategorien: TheBay, Videoüberwachungen Schlagwort: Neu

Beschreibung
Bewertungen (0)

Artikelmerkmale

Artikelzustand:

Neu

Besonderheiten:

Digital

Marke:

Dahua

Modell:

Dahua 8MP / 16 Kanal DVR

Herstellernummer:

DHI-XVR5216AN-4KL

Produktart:

Digitaler Videorekorder

Herstellungsland und -region:

China

Dahua 8MP Digital Video Recorder / 16 Kanal / DHI-XVR5216AN-4KL

neu

Dahua 8MP Digital Video Recorder / 16 Kanal / DHI-XVR5216AN-4KL

Der DHI-XVR5216AN-4KL Digitalrecorder mit AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP Interface und CVBS ist ein professionelles Gerät für den Einsatz in Überwachungsinstallationen.

______________________________________________________________________________________________________________

Dahua XVR as the perfect solution to upgrade existing video surveillance systems.

Smart H.264+
Smart Codec, H.264+ can reduce up to 70% bit rate and storage requirements without having to invest in new cameras.HDCVI/AHD/TVI/CVBS/IP Auto-detect
The XVR can auto recognize the signal of front-camera without any setng. It makes operaton more friendly and convenient.8MP Resolution
The XVR supports up to 8MP HD resoluton HDCVI camera and IP camera input.Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost-e?ectve and convenient for installaton

Intelligent Video System (IVS)
With built-in intelligent video analytcs, the XVR has the ability to detect and analyze moving objects for improved video surveillance.

Face Detecton
It is a type technology being used in a variety of applicatons that search or identfy individuals which show front cameras.

Smart Search
This functon helps you get more moton detect video during a short tme through drawing a region when playback.

> Embedded processor
> H.264+/H.264 dual-stream video compression
> Support HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12/24 channels IP camera inputs, each channel up to 8MP
> Max 48/96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

8/16 Channel, BNC

HDCVI Camera

4K, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

8+4/16+8 Channel, each channel up to 8MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.264+/H.264

Resolution

4K, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF

Record Rate

Main stream: 4K(1~7fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)

Sub steram:960H(1~15fps);

D1/CIF/QCIF(1~25/30fps)

Bit Rate

1Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768

VGA: 1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

When IP extension mode not enabled:

8CH: 1/4/8/9

16CH: 1/4/8/9/16

When IP extension mode enabled:

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.42, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

2 SATA Ports, up to 8TB capacity for each disk

eSATA

N/A

Auxiliary Interface

USB

2USB Ports (1 USB 2.0 , 1 USB 3.0)

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

8CH:DC12V/4A

16CH:DC12V/5A

Power Consumption

<15W (Without HDD)

Construction

Dimensions

1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″)

Net Weight

2.35kg (5.2 lb) (without HDD)

Gross Weight

3.2kg (7.05lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1
